How to Use Microsoft SMB for OS Detection

The Study of Different Approaches from 4 Well-Known Vendors   You may wonder “how does a blackbox penetration test tool know about my server information when it  only has the server’s IP address?” The secret is a protocol, such as Sever Message Block (SMB), discloses that information in the response to your special requests. In our …

How to Use Microsoft SMB for OS Detection
How to Use Microsoft SMB for OS Detection

The Study of Different Approaches from 4 Well-Known Vendors



You may wonder “how does a blackbox penetration test tool know about my server information when it  only has the server’s IP address?” The secret is a protocol, such as Sever Message Block (SMB), discloses that information in the response to your special requests.

In our last blog, we talked about the essential role that SMB plays in Operating System (OS) fingerprint recognition. In this blog, we will review how different vendors use SMB, and the pros and cons of each approach;  and in the end, we summarize them into a few principles to follow in order to get an accurate OS recognition.

1. Nmap

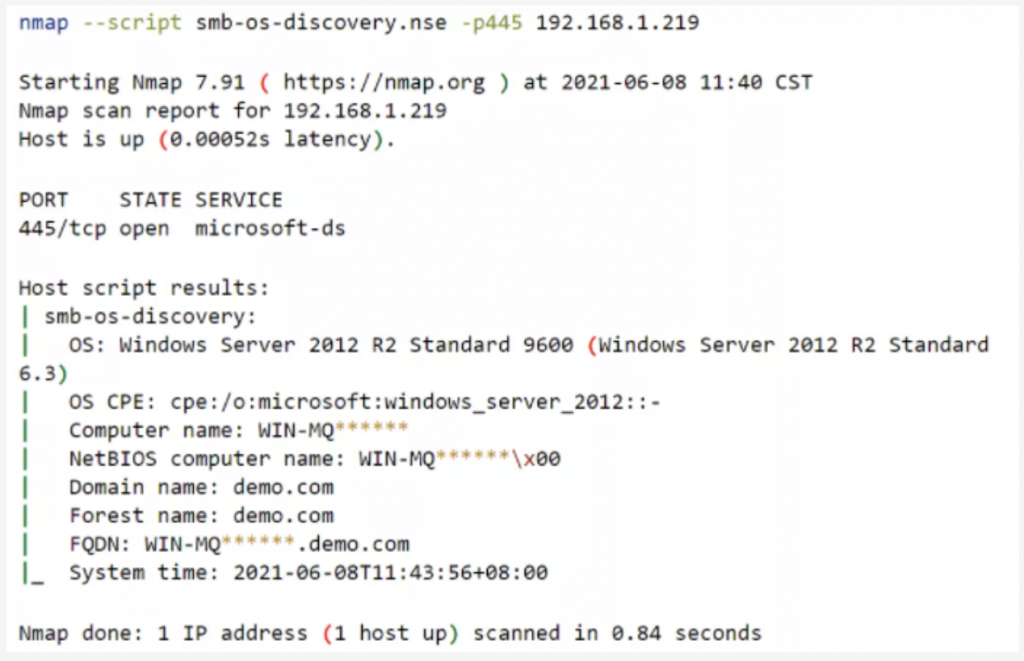

First, let’s look at Nmap’s approach. Nmap basically uses “nse script – nmap/scripts/smb-os-discovery.nse” to realize this function.  Its method is shown as follows:

How to Use Microsoft SMB for OS Detection
Or use the following commands to achieve the same result:
How to Use Microsoft SMB for OS Detection
However, it has been confirmed that this approach with “smb-os-discovery.nse” cannot recognize OS of Windows Server 2016 and above. In addition, it cannot detect hosts that only support SMBv2.

2. Censys

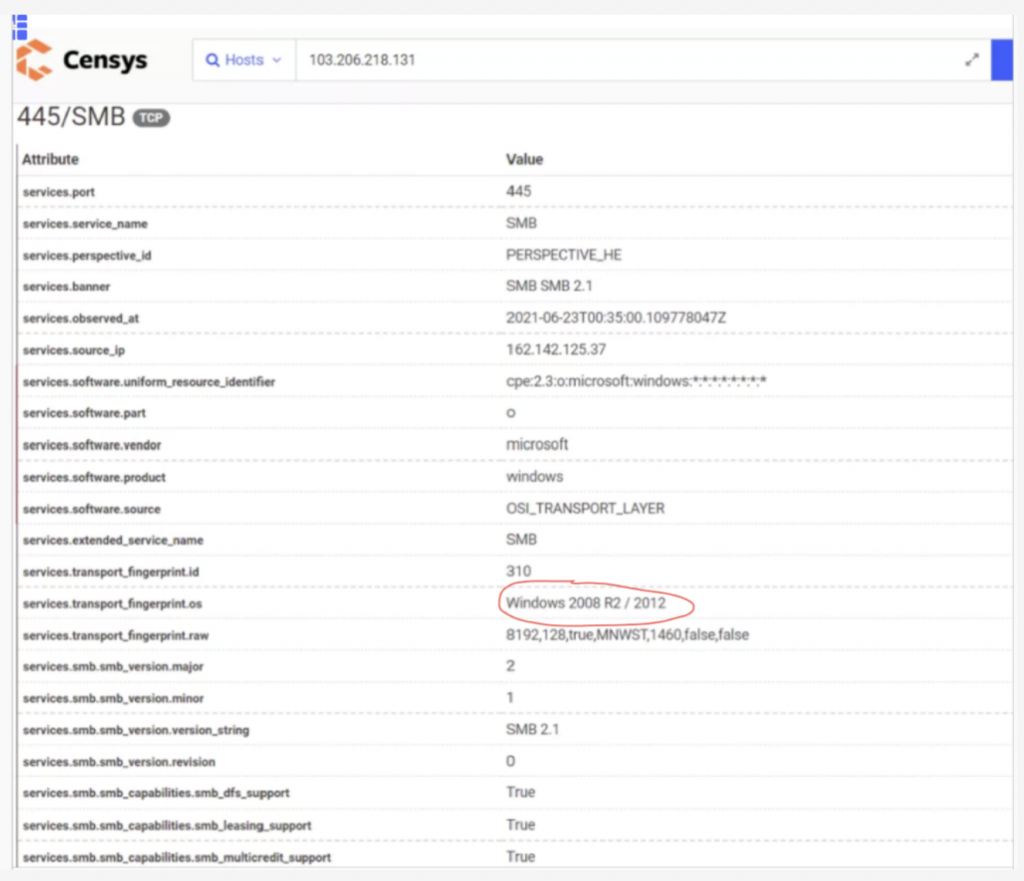

Most likely Censys uses Nmap -sV option to detect SMB OS. After carefully examining Censys’s response to our test machine, we tend to get this conclusion. Due to the same flaw, it falsely detected our test machine Windows Server 2016 as Windows Server 2008 R2 -2012 microsoft -ds.  (see Figure 1)

Censys
Figure 1: Censys’s OS Fingerprint Recognition via SMBv2.1

3. Shodan

We reviewed Shodan’s OS recognition with SMBv1 (Figure 2) and SMBv2(Figure 3), and found that Shodan uses its priorietary approach to deal with OS regconition, and it scanned the common directory which is considered more intrusive scanning.

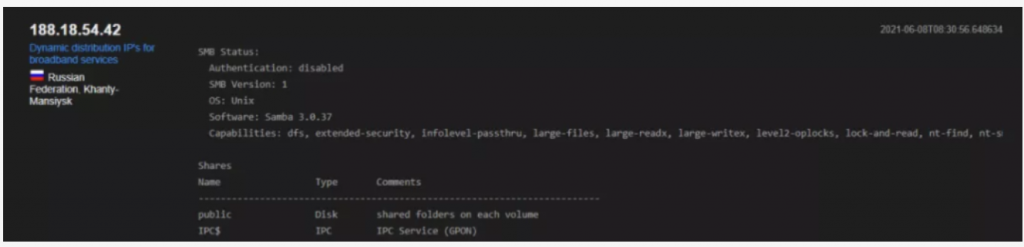

Figure 2: Shodan’s OS Recognition with SMB v1
Figure 2: Shodan’s OS Recognition with SMB v1

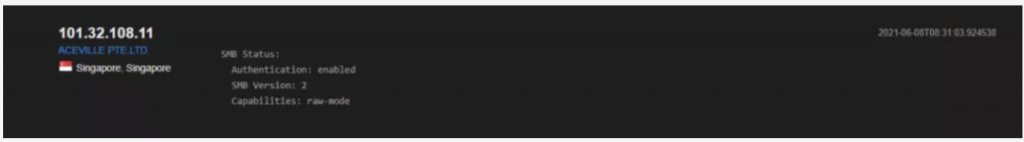

Figure 3: Shodan’s OS Recognition with SMB v2
Figure 3: Shodan’s OS Recognition with SMB v2

It’s worth mentioning that by using the following fields:

  • OS: corresponding to NativeOS Microsoft defined in SMB protocol
  • Software: corresponding to NaveLanMan in SMB protocol

The target’s OS can be determined by combining the information obtained from these two fields.

  • Example 1: Test machine is Windows Server 2016
    • Native OS field: Windows Server 2016 Datacenter 14393
    • NativeLanMan field: Windows Server 2016 Datacenter 6.3
  • Example 2: Test machine is Ubuntu
    • Native OS field: Windows 6.1
    • NativeLanMan: Samba 4.3.1-Ubuntu

In example 2, NativeLanMan shows correct information and Native OS presented a false recognition.

4. Metasploit

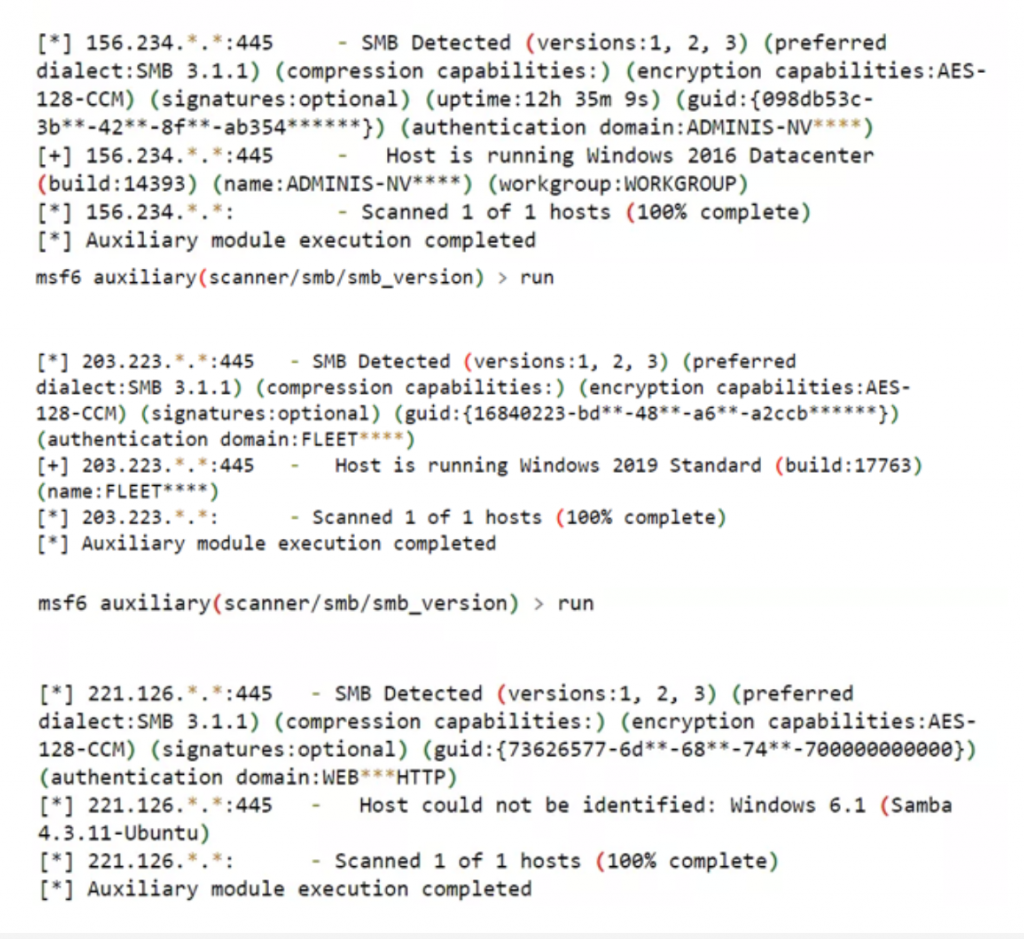

MSF uses “auxiliary/scanner/smb/smb_version” module to detect SMB OS. The test shows its accuracy is as good as Shodan’s. Figure 4 is MSF’s export of OS information via SMB:

Figure 4: MSF’s export of OS information via SMB
Figure 4: MSF’s export of OS information via SMB

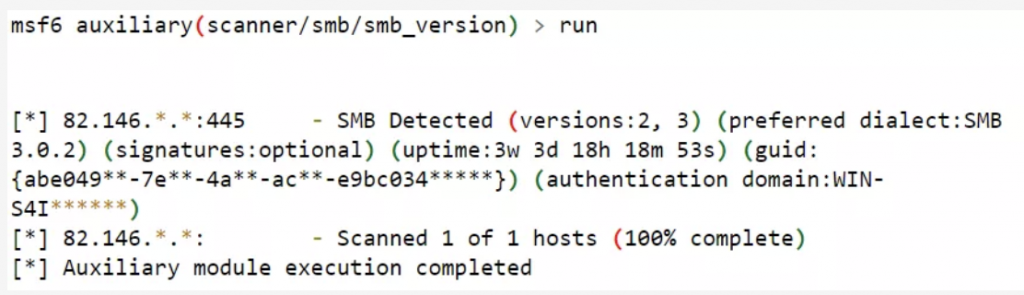

And when tested with a target that supports SMBv2 only, MSF shows relative comprehensive analysis, as shown below.

Figure 4: MSF’s export of OS information via SMB

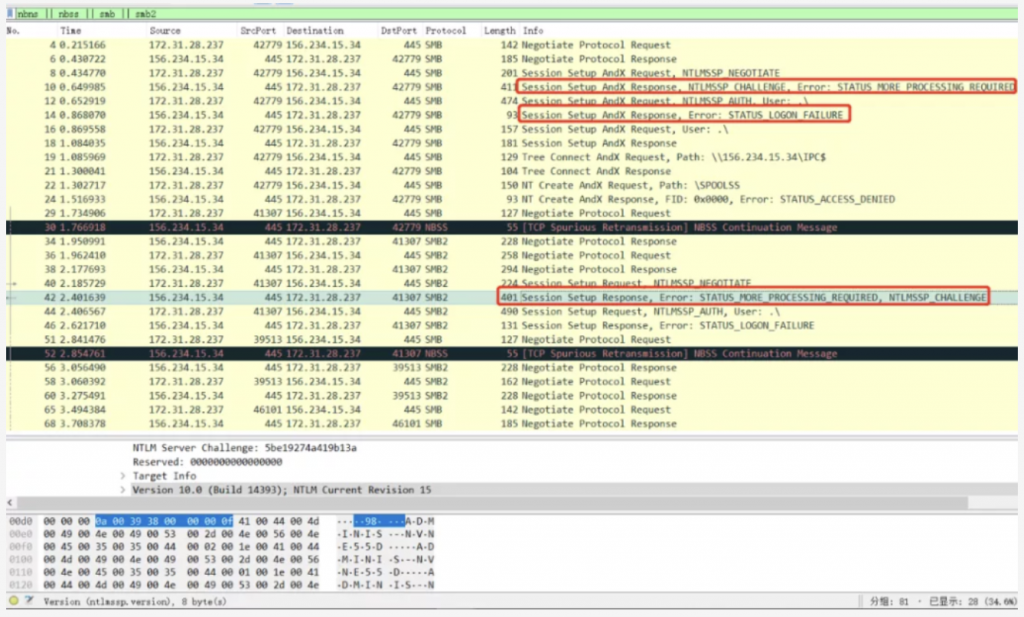

And for SMBv1 detection, MSF basically sends a request such as “Session Setup AndX Request, NTLMSSP_NEGOTIATE”. And from the packet capture showed in Figure 5, MSF also scanned the common directory.
Figure 5: MSF SMBv1 Detection
Figure 5: MSF SMBv1 Detection
