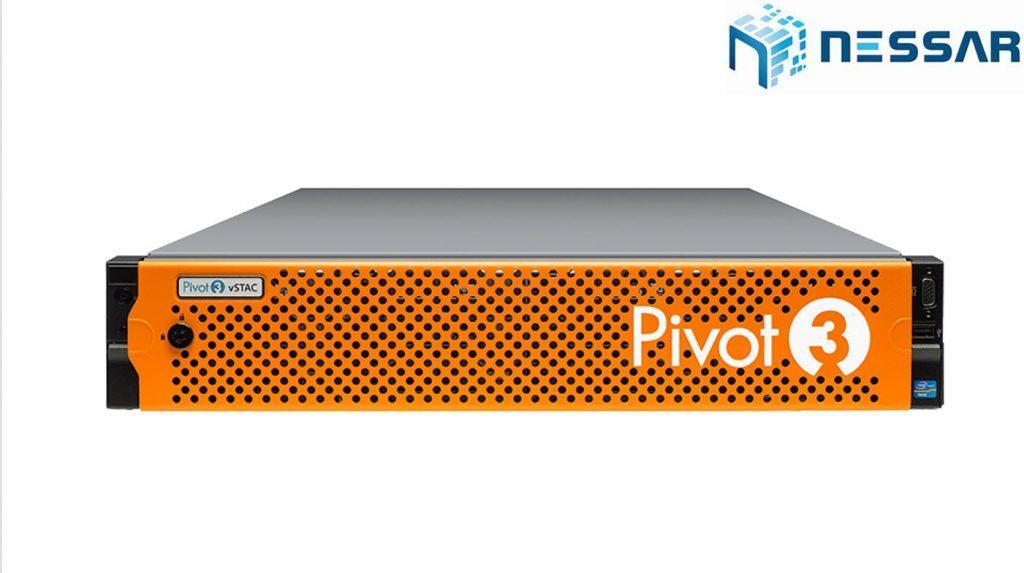

Pivot3 V5-6400
Modern high-definition IP video surveillance systems, smart cities, and IoT generate massive amounts of critical, sensitive data. The Pivot3 V5-6400 Acuity IoT-Surveillance Series is purpose-built for demanding, data-intensive video workloads of any size. Pivot3 V5-6400 provides the highest levels of performance, resiliency and availability so critical video data is stored without loss, protected from any … Continued
Modern high-definition IP video surveillance systems, smart cities, and IoT generate massive amounts of critical, sensitive data. The Pivot3 V5-6400 Acuity IoT-Surveillance Series is purpose-built for demanding, data-intensive video workloads of any size. Pivot3 V5-6400 provides the highest levels of performance, resiliency and availability so critical video data is stored without loss, protected from any failures and always available when and where it is needed most.
Eliminate Data Loss
Sustained high throughput prevents image degradation and frame loss
Scale On-Demand
Seamlessly scale compute, storage and bandwidth linearly or independently.
Maximize Uptime
Advanced high availability ensures data is always available and accessible.
Simplify Management
Multiple petabytes can be easily managed by a single, non-IT specialist.
KEY FEATURES AND BENEFITS
Critical Video Surveillance Infrastructure
Reduced Risks and Liabilities
Patented erasure coding eliminates system downtime and protects against liabilities associated with data loss
Improved Security Effectiveness
Pooled cache and disk resources eliminate frame loss and image degradation ensuring live and recorded video is always protected and accessible.
Reduced Costs and Complexity
Pivot3 is 10-30% lower cost than SAN/NAS, delivering lower TCO over DAS/NVR, with no advanced IT skills required to manage.
Improved Response and Situational Awareness
Virtual Security Appliance accesses video and integrated systems on any device, including mobile, with no need for costly graphics workstations.
Effective Mobility
Virtual security appliances enable full-function access to live video streams on any device – phone, tablet, zero client, workstation, or video wall.
Pay As You Grow, Scale On Demand
Scale compute, capacity and bandwidth with a single appliance, grow capacity with storage-only appliances to improve efficiency at scale.
FLEXIBLE SOLUTIONS FOR SPECIFIC NEEDS
Available as Turnkey Appliances or Software-only on Your Preferred Hardware Platforms
All-in-One Surveillance
Host video applications and store video data for 100 to 10,000+ cameras
Large-Scale Surveillance
Enterprise-grade infrastructure for large-scale surveillance at the lowest cost in the market.
Storage
Add storage appliances to surveillance appliances to scale capacity only.
Virtual Security
Virtualized client workstations ideal for operations center, mobile and remote access.
Technical Data
| Model Name | Pivot3 V5-6400 Virtual SOC |
| HDD Capacity (TB) | None |
| SSD Capacity (TB) | 1.92TB or 3.84TB |
SSD Caching | No |
| Max Appliances per vPG* | 16 |
| Max Storage per vPG | 60.8TB |
| Server Virtualization | VMware ESXi |
| Virtual Clients | VMware Horizon |
| Software Defined SAN | Yes |
| Optional GPU | Up to 5x NVIDIA T4 |
| Processors / Cores | 2 x 12 Core Intel 4214 2 x 20 Core Intel 6230 2 x 24 Core Intel 6252 |
| RAM (GB) | 64, 96, 128, 160, 192GB |
| Networking | 6x 10GbE (SFP+ or RJ45) |
REDEFINING VIDEO SURVEILLANCE INFRASTRUCTURE
Pivot3 V5-6400 delivers high-performance, ultra-dense, highly resilient solutions that reduce risk, eliminate downtime and data loss, and simplify scale and management for global organizations with demanding, data-intensive video surveillance environments.
