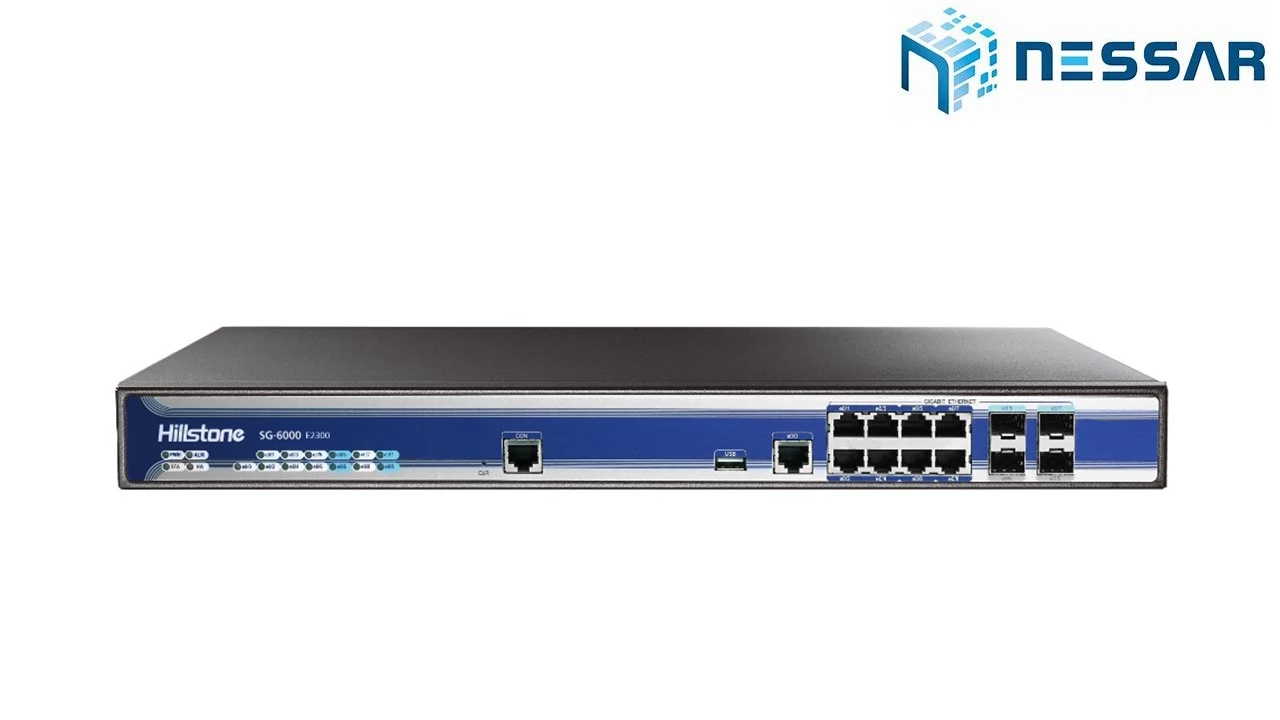

Hillstone SG-6000-E2300 Next-Generation Firewall

The Hillstone SG-6000-E2300 Next Generation Firewall (NGFW) provides comprehensive and granular visibility and control of applications. It can identify and prevent potential threats associated with high-risk applications while providing policy-based control over applications, users, and usergroups. Policies can be defined that guarantee bandwidth to mission-critical applications while restricting or blocking unauthorized or malicious applications. The …

The Hillstone SG-6000-E2300 Next Generation Firewall (NGFW) provides comprehensive and granular visibility and control of applications. It can identify and prevent potential threats associated with high-risk applications while providing policy-based control over applications, users, and usergroups. Policies can be defined that guarantee bandwidth to mission-critical applications while restricting or blocking unauthorized or malicious applications. The Hillstone SG-6000-E2300 NGFW incorporates comprehensive network security and advanced firewall features, provides superior price performance, excellent energy efficiency, and comprehensive threat prevention capability.

Technical Data

 SG-6000-E2300SG-6000-E2800SG-6000-E2860SG-6000-E2868
FW Throughput (1) 2.5Gbps/4Gbps2.5Gbps/4Gbps6Gbps6Gbps
IPSec Throughput (2)1Gbps3Gbps3Gbps3Gbps
AV Throughput (3) 700Mbps1.2Gbps1.2Gbps1.2Gbps
IPS Throughput (4)1Gbps1.8Gbps1.8Gbps1.8Gbps
IMIX Throughput (5)800Mbps2Gbps2Gbps2Gbps
NGFW Throughput (6)650Mbps850Mbps1Gbps1Gbps
Threat Protection Throughput (7) 500Mbps700Mbps800Mbps800Mbps
New Sessions/s (8)50,00080,00080,00080,000
Maximum Concurrent Sessions (Standard/Maximum)1M/2M1M/2M2M2M
IPSec Tunnel Number2,0002,0004,0004,000
SSL VPN Users (Default/Max)8/1,0008/1,0008/2,0008/2,000
Virtual Systems (Default/Max)5-Jan5-Jan5-Jan5-Jan
Storage OptionsN/AN/AN/A128G/256G/512G SSD (E2868/E2868A/E2868B)
Management Ports1 x Console Port, 1×USB port1 x Console Port, 1×USB port1 x Console Port, 1 x AUX Port, 1 x USB Port, 1 x HA, 1 x MGT1 x Console Port, 1 x AUX Port, 1 x USB Port, 1 x HA, 1 x MGT
Fixed I/O Ports5 x GE, 4 x Combo5 x GE, 4 x Combo6 x GE, 4 x SFP6 x GE, 4 x SFP
Available Slots for Extesion ModulesN/AN/A2 x Generic Slot2 x Generic Slot
Expasion Module OptionN/AN/AIOC-4GE-B-M, IOC-8GE-M, IOC8SFP-M

IOC-4GE-B-M, IOC-8GE-M, IOC8SFP-M

Maximum Power Consumption45W Redundancy 1 + 11×45W Redundancy 1 + 11 x 150W Redundancy 1 + 11 x 150W Redundancy 1 + 1
Power SupplyAC 100-240V 50/60Hz
DC -40 ~ -60V
AC 100-240V 50/60Hz
DC -40 ~ -60V
AC 100-240V 50/60Hz
DC -40 ~ -60V
AC 100-240V 50/60Hz
Dimension (W×D×H, mm)1U 17.4 x 9.5 x 1.7 in (442 x 241 x 44 mm)1U 17.4 x 9.5 x 1.7 in (442 x 241 x 44 mm)1U 17.2 x 14.4x 1.7 in (436 x 366 x 44 mm) 1U 17.2 x 14.4x 1.7 in
(436 x 366 x 44 mm)
Weight5.5 lb (2.5kg) 5.5 lb (2.5kg) 12.3lb (5.6kg) 12.3lb (5.6kg)
Temperature32-104 F (0-40°C)32-104 F (0-40°C)32-104 F (0-40°C)32-104 F (0-40°C)
Relative Humidity10-95% (no dew)10-95% (no dew)10-95% (no dew)10-95% (no dew)
Compliance and CertificateCE, CB, FCC, UL/cUL, ROHS, IEC/EN61000-4-5 Power Surge Protection, ISO 9001:2015, ISO 14001:2015, CVE Compatibility, IPv6 Ready, ICSA Firewalls
